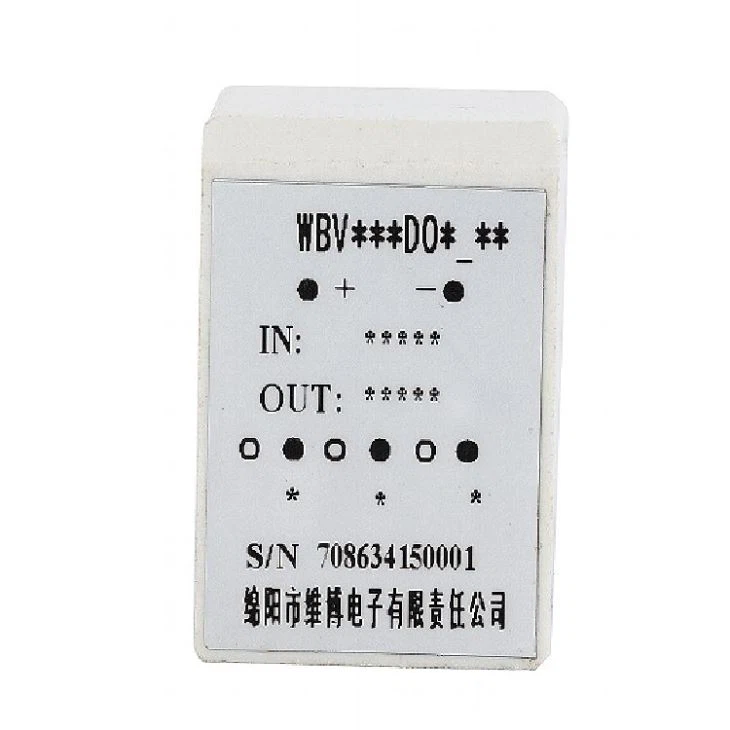

WBV411D07 siv qhov tshwj xeeb rho tawm ntsuas los ntsuas lub zog zaus AC voltage hauv daim phiaj fais fab thiab Circuit Court hauv lub sijhawm thiab hloov nws mus rau DC voltage (Uz) tso zis tawm ntawm tus qauv vertebra; nrog cov qhov ntsuas siab, siab cais tawm, dav dav teb, tsis tshua muaj txav, tsis muaj zog Siv dav, qhov ntau yam kub thiab qhov loj me me. Cov khoom no haum rau cov khoom siv fais fab, lub tshuab hluav taws xob saib xyuas kev siv tshuab kaw lus, kev tswj xyuas kev lag luam, tswj lub teeb liab, thiab lwm yam.
Muaj cov hauv qab no qhov yuav tsum tau muaj rau lub ntsuas hluav taws xob.
(1) Qhov ntsuas hluav taws xob txuas nrog hauv Circuit Court hauv kev sim yuav tsum tsis muaj kev cuam tshuam qhov dav thiab ntu ntawm ntsuas qhov ntsuas hluav taws xob.
(2) Qhov ntsuas hluav taws xob kis tau los ntawm qhov ntsuas qhov ntsuas hluav taws xob yuav tsum yog tib yam li qhov ntsuas hluav taws xob kom ntsuas. Qhov muab faib ua ke yuav tsum muaj kev ywj pheej ntawm ntsuas ntsuas tsawg zaus thiab ntau yam.
(3) Qhov ntsuas hluav taws xob ib feem ntawm lub zog hluav taws xob yog qhov ywj pheej ntawm lossis qhov ywj pheej ntawm cov huab cua ib puag ncig (huab cua siab, ntsuas kub, av noo).
(4) Lub zog siv los ntawm qhov ntsuas qhov ntsuas hluav taws xob yuav tsum me me. Nyob rau qee qhov kev mob txias, qhov kub nce los ntawm hluav taws xob lub zog hluav taws xob los ntawm qhov ntsuas hluav taws xob yuav tsum tsis txhob ua rau muaj qhov hloov ntawm qhov feem pua siab hloov.
(5) Lub ntsuas hluav taws xob tsis txhob cuam tshuam los ntawm lub cev hluav taws xob sab nraud, thiab ntawm qhov tod tes, nws yuav tsum tsis txhob tsim hluav taws xob muaj zog cuam tshuam rau sab nraud ib puag ncig.
Qhov zoo:
27000 square metres tsis muaj plua av rhiav,
30 xyoo kev,
6 xyoo' daim ntawv thov hauv kev kub ceev tsheb nqaj hlau,
ISO, EMC, ETC muaj ntawv pov thawj.
Daim ntaub ntawv:
Haum rau kev ntsuas tam sim no,
Tsis siv neeg xyuas thiab tswj,
Pom hluav taws xob teeb liab thiab hloov kho,
Cov ntaub ntawv tau los.
Cim npe nrov: Tsawg hluav taws xob Voltage Sensor, Tuam Tshoj, cov chaw muag khoom, lub Hoobkas
Rated input voltage | 10V, 50V, 100V, 250V, 300V, 500V, 750V, 1000V AC |
Tsim tawm teeb | 0-3.5V, 0-5V AC |
Qhov Raug Yog | 0.1% |
Kev nkag siab impedance | kwv yees pes tsawg |
Teb lub sijhawm | 300ms |
Ntsuas ntsuas ntau | 0 - 1.2 npaug ntawm cov movies rated tam sim no |
Over load muaj peev xwm | 30 zaug ntawm rated input tam sim no, 5s |
Tsim tawm impedance | 6V |
Static tam sim no | 5mA |
Lub hwj chim muab | ± 12V, ± 15V DC |
Kev rho tawm voltage | ≥2500V DC, rau 1 feeb |
Tsim tawm ripple | 10mV |
Thermal txav | 80ppm / ° C |
Huab cua sov qhov kub | 0℃～+50℃ |
Cov khoom siv ntawm lub plhaub | ABS (Raws li UL94V-0) |
Kev tiv thaiv plhaub | IP20 |
Plhaub hom | tsis muaj aperture |
MTBF | GG gt; 50000h |
Txoj kev teeb tsa | PCB mounting, Pin 1mm |
Nyhav | 30g |
